# Click Heatmap

A heatmap that visualizes click (or tap) behavior on each page element. You can quantitatively confirm user intent and CTA effectiveness.

***

## What this heatmap can tell you

* Which elements get the most clicks
* Whether CTA buttons receive enough clicks
* Whether there are spots users want to click but have no link configured

> **Prerequisite**: Element-level click analysis requires [element setup](/en/insight/smart-heatmap/block-element-settings.md#element-settings) on the target page. Switching to Click Heatmap auto-scans elements.

***

## Two display modes

Switch display modes using the dropdown menu in the upper left of the heatmap. **The default is Click Heatmap (color display).** We recommend starting with the color view to grasp overall click distribution intuitively, then switching to Element Click (numerical) for deeper element-level analysis.

| Mode                               | Characteristics                                                                                               |
| ---------------------------------- | ------------------------------------------------------------------------------------------------------------- |
| **Click Heatmap** (color, default) | Visualizes click concentration via color shading. Also surfaces clicks on areas not designated as interactive |
| **Element Click** (numerical)      | Shows click count, click rate, and click share per element                                                    |

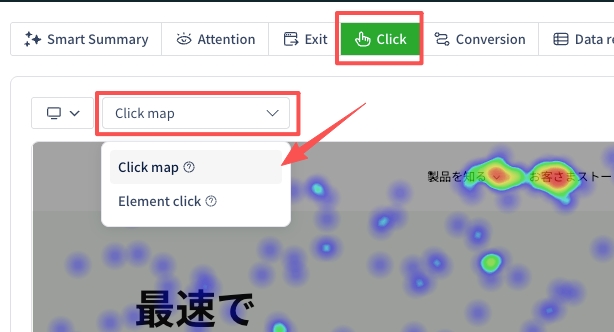

<figure><img src="/files/9Cda1iJmtq87OxN8kzsw" alt=""><figcaption><p>Two-mode switcher dropdown</p></figcaption></figure>

***

## Click Heatmap mode (color display)

Visualizes click overlap with **thermography (color shading)**. Surfaces clicks on areas not designated as interactive — useful for finding elements that "have no link but users keep clicking."

| Color       | Meaning             |
| ----------- | ------------------- |
| Red         | Concentrated clicks |
| Blue        | Few clicks          |
| Transparent | Little to no clicks |

***

## Element Click mode (numerical display)

Displays click data per element using **numbers**. You can switch between 3 metrics:

| Display Metric  | Description                                                                             |
| --------------- | --------------------------------------------------------------------------------------- |
| **Click Count** | Number of times each element was clicked                                                |
| **Click Rate**  | Click rate per element. Formula: target element's click count ÷ PVs reaching that block |
| **Click Share** | Each element's share of total page clicks                                               |

### Element detail view

Clicking an element on the heatmap opens a detail popup:

* Display count
* Click count
* Click share
* Click UV (unique users)
* Conversion count

### Right-side element list

The right-side panel shows the full list of elements on the page.

* **Sort order**: Sorted by **page position (element top edge from top)** by default. Click any column header to re-sort by that metric.
* **Click behavior**: Clicking a row in the element list **switches the right-side panel to that element's detailed data**. The heatmap area does **not** jump to or highlight the element's position — this panel is designed for inspecting per-element details.

### Element analysis (detailed data and breakdown)

Beyond the headline numbers, clicking an element reveals **breakdown data** for the visits that clicked it. Filter and decompose by visit attributes (traffic source, device, etc.) to answer questions like "who is clicking this element from where?"

| Breakdown data | Description                                                                    |
| -------------- | ------------------------------------------------------------------------------ |
| Traffic source | Source of the visits that clicked this element (search engine, campaign, etc.) |
| Device info    | Device info for visits that clicked this element                               |
| Entry page     | Landing page of visits that clicked this element                               |
| Region         | Region of visits that clicked this element                                     |

### Element action menu

Selecting an element exposes the following operations:

| Operation                 | Description                             |
| ------------------------- | --------------------------------------- |
| Rename                    | Give the element a meaningful name      |
| Move to position          | Scroll the view to where the element is |
| **Mark as CTA**           | Tag as an important CTA                 |
| **Mark as fixed display** | Tag as a floating element               |
| Delete                    | Remove the element marker               |

***

## Show CTAs only filter

Check **"Show CTAs only"** to limit both the heatmap and the element list to elements marked as CTAs. Useful for quickly focusing on key elements.

> For how to designate CTAs, see [Block & Element Setup — What is a CTA?](/en/insight/smart-heatmap/block-element-settings.md#what-is-a-cta).

***

## Metrics used

| Metric          | Definition                                                               | Formula                                         | Display mode  |
| --------------- | ------------------------------------------------------------------------ | ----------------------------------------------- | ------------- |
| **Click Count** | Click count for the target element. Measured regardless of link presence | —                                               | Element Click |
| **Click Rate**  | Click rate for the target element                                        | Target element clicks ÷ PVs reaching that block | Element Click |
| **Click Share** | Target element's share of total page clicks                              | Target element clicks ÷ total page clicks       | Element Click |

> For detailed formulas, see [Metrics Reference](/en/insight/smart-heatmap/metric-reference.md).

***

## Analysis tips

### "Positive" vs "negative" click signals

Red areas aren't always good news.

* **Positive**: CTA buttons or important links concentrate clicks
* **Negative**: Non-link images or text concentrate clicks (= user expectations don't match page design)

### CTA click rate guideline

CTA click rate, relative to visits, is best at **10% or higher** as a rough benchmark. Below that, consider improving CTA visibility, copy, or placement.

### Checkpoints

* Are click concentrations where you'd expect them?
* Are the most-clicked elements buried in hard-to-see areas?
* Are there elements being clicked that have no link or action set?
* Is CTA click rate sufficient?

***

## Related pages

* [Conversion Heatmap](/en/insight/smart-heatmap/conversion-heatmap.md) — Verify whether clicked elements drive conversion
* [Stay Heatmap](/en/insight/smart-heatmap/stay-heatmap.md) — Check stay time around clicked elements
* [Metrics Reference](/en/insight/smart-heatmap/metric-reference.md)


---
